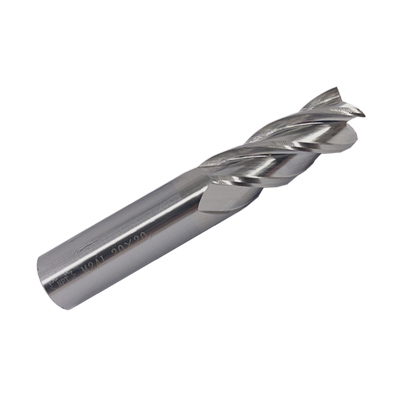

Full Grinding And Hardened End Mills

Mainly used for processing plane, side plane, concave surface, mutually perpendicular step surface, is an indispensable tool in milling. The product is made of 501 hardened high speed steel (the new milling cutter has been upgraded to M35 material). It's cutting performance, quality, appearance and precision are superior to those of ordinary end milling cutters, and it has the characteristics of high cutting efficiency.

It is suitable for machining center and semi-automatic milling machine for rough milling and semi finish milling. Production equipment for cutting tools: four axis (five axis) machining center.

Technical Information:

1. Dimension method for milling cutter: blade diameter * handle diameter * edge length * total length (MM);

2. 4F blade diameter tolerance: D (+0.03, -0);

3. Handle diameter tolerance: D (+0.03, -0);

4. Radial runout<0.04MM;

5. Face runout<0.05MM;

6. Milling cutter helical angle: 35 degrees;

7. For milling cutters and cutting parts, the crystal size of the material reaches the highest level 0, and the red and hard properties are high.

8. In milling, the coolant should be added, and the milling speed should be set according to the technical requirements.

9. The workpiece can be milled below HRC35;

10. The rest are in accordance with national standards.
